MG SOLAR WATER HEATER
It is a complete solution of getting natural hot
water with the help of sunlight and MG solar system. In Kerala market there are
three types of solar water heater available. First is a flat plate collector (FPC).
This is the most common type solar water heater. Muricken's has tested and
proved 30 years ago that it is the most suitable type fo r Kerala's climatic
conditions which 80°C hot water with the help of normal sunlight. Second one is
Evacuated Tube Collectors (ETC) which are made up of rows of parallel,
transparent glass tubes. The demerits of ETC model are:- we get only very low
temperature, that is heat up to 40 ± 5degree Celsius , Water leakage through
glass Sealing, Chance of brakeage of tubes when it is exposed to sunlight,
chance to catch fungus inside the tube and consequently lower the heat of water.
3rd one is concentrating collector type.
MG SOLAR WATER HEATER
FEATURES:
►
Maintenance free.
►
Water heated up to 80°C.
►
No electrical hazard.
►
No expenses after installation. ►
The best way of getting natural hot water
for cooking and industrial purpose
►
Copper capillaries.
►
P U F system and glass wool to avoid conduction loss for storage tank.
►
Light weight.
►
T I G welded fins and tubes.
►
Compact in size.
►
Heat expulsion.
►
Fully automatic.
►
High quality tempered 4mm thick front glass.
►
Sturdy and weather proof design.
►
Different Capacity starting from 125 liters to 1000 liters.
►
Custom built Solar Water Heater can also be provided. ►

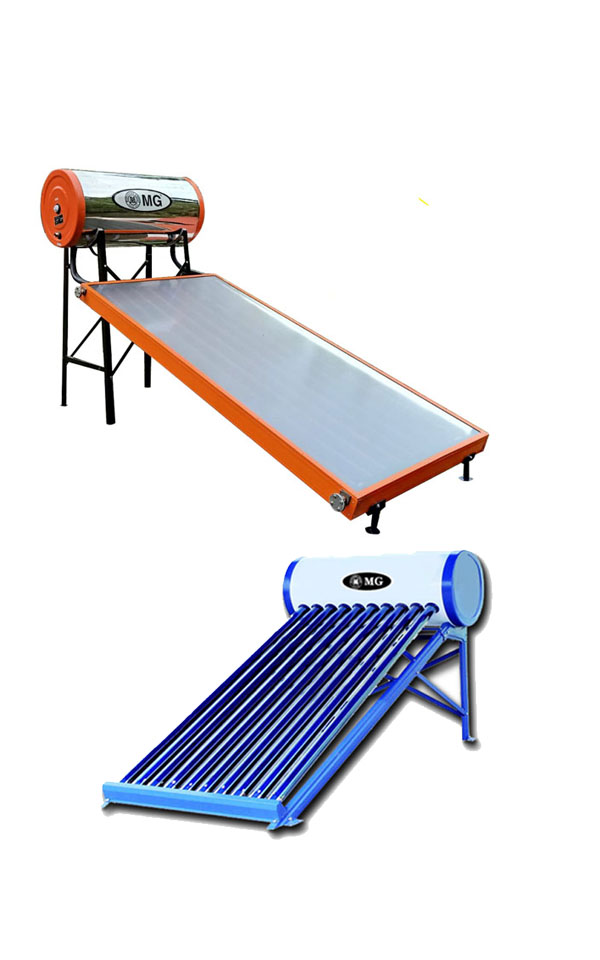

Two models FPC and ETC.
► In FPC
special model we can connect pressure pump.

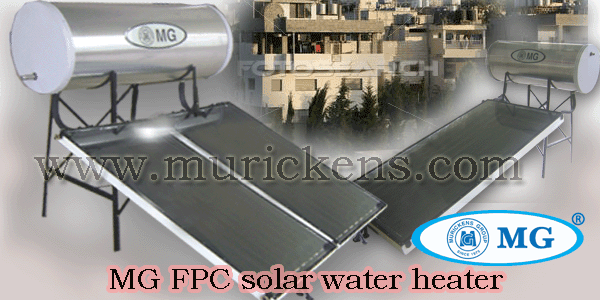

TECHNICAL FATURES OF SOLAR WATER HEATER
|
MG solar water heater FPC model |
125 |
150 |
250 |
500 |
|
Usage No. of person |
5 or 6 |
6 or 7 |
10 |
12 |
|
Installation Area(sq. mt) |
4 |
4.5 |
8 |
16 |
|
Water output temp. (° C) |
85 ± 5 °C under normal Sunny conditions |
|
FPC capillary tube Model: |
|
|
|
|
|
No. fins |
9 |
9 |
18 |
36 |
|
Collector Material |
Copper |
|
Collector Box |
|
|
|
|
|
Coating |
Extruded Aluminum Powder Coated |
|
Collector Size |
2050 mm x 1050 mm x100 mm |
|
Insulation |
48 Kg/Cu,metre density Rock wool slab for standard model |
|
box back sheet |
Aluminum sheet |
|
Solar Collector Absorber |
|
|
|
|
|
Coating |
Selective black chrome – Nalsun |
|
Insulation cover material |
Aluminum sheet |
|
Bonding between fin |
|
|
|
|
|
And riser |
Metallurgical bonding |
|
Header |
99.9 % copper 1” , 22 SWG |
|
Riser |
99.9 % copper ½ “ 24 SWG |
|
Hot Water Tank |
|
|
|
|
|
Tank type |
Cylindrical – horizontal |
|
Tank material (Inner) |
Stainless Steel SS 304 (Food Grade) - 0.9 mm |
|
Insulating material for tank |
48 Kg/Cu,metre density Rock wool slab for standard model |
|
Electric Heater (optional) |
No need - if need 2KVS |
|
Pressure pump model is available *Specifications are
subject to change without prior notice". |

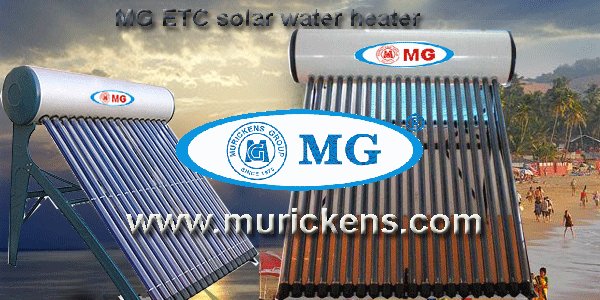

MG ETC SOLAR WATER HEATER TECHNICALSPECIFICATION
|
MG Solar Water Heater ETC Model |
100 |
150 |
200 |
250 |
|
Usage No. of person |
3 or 4 |
5 or 6 |
8 |
10 |
|
Installation Area(sq. mt) |
2.1 |
3.1 |
3.8 |
4.7 |
|
Water output temp. (° C) |
40 ± 5 °C Under Normal Sunny Conditions |
|
ETC tube Model: No. of Tubes |
14 |
20 |
28 |
34 |
|
Material |
Glass 3.3 |
|
Coating |
Selective Absorptive Coating |
|
Glass Sealing |
Silicon Rubber |
|
Hot Water Tank material (Inner) |
Stainless Steel SS 304 (Food Grade) - 0.5 mm |
|
Thermal Insulation |
PUF Insulation |
|
Electric Heater (optional) |
2.0 KW with Thermostat |
APPLICATIONS:-
►
In Restaurants, Clubs & Resorts.
►
In Hospitals, Hostels, Institutions.
►
In Canteens and Laundries.
►
For Swimming pool water heating.
►
In most Process Industries.
►
In Green buildings to earn renewable energy points.
►
As it feed hot water to Boilers.
► Can washing at Dairy collection centers.
►
General washing & cleaning purposes.
►
In Agricultural sector.
INSTALLATION GUIDELINES:
1. Unobstructed sunlight (Shadow free area)
2. Flat (Preferable) or sloping roof area as requested
3. Area should be near to point of usage (bathroom / kitchen) : to avoid
long hot water piping and heat losses
4. The system (solar Evacuated tube collectors) should face south direction
5. Fresh (cold) water tank at a height @ 5-7 ft above the system tank height
6. 5 years guarantee, onsite after sales service
|
|
