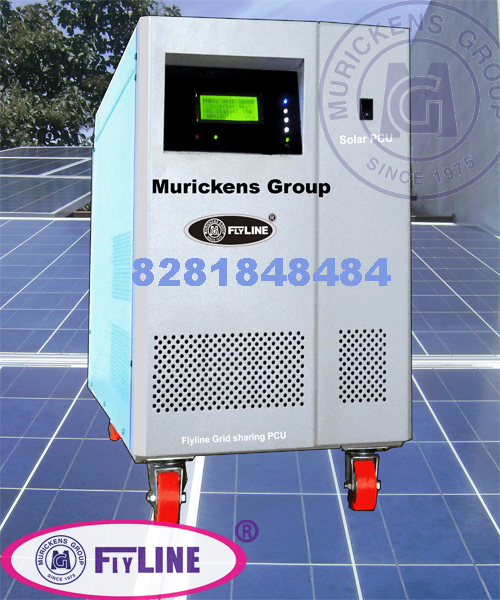

FLYLINE BATTERYLESS SOLAR/MAINS COMPENSATION SYSTEM
Murickens, always adopt new technologies for the need of tomorrow. We introduced have battery-less renewal energy PCU,this advanced system does not require batteries for converting solar power into utility power of 220V AC. It absorbs solar power directly from solar panels and if the load driven by this system exceeds the available solar power, it will draw the required power from the mains to compensate the output power requirement without any glitch. In conventional solar power systems using batteries, one third of the total investment goes for batteries and since they are required to be replaced after some years.
In the case of conventional Grid Tied Inverters which are working without batteries, we can’t use even the available solar power during power failure and its installation requires prior permission and approval from KSEB. Flyline solar grid sharing system is an ideal for a category of power consumers like educational institutions, offices, shops etc, use a major percent of their total power consumption during day time. Our newly introduced Flyline battery less solar/mains compensation system is ideally suited for such consumers. This system has the advantages of ‘no battery’ over the conventional solar inverter system and ‘available solar power can be used’ over the grid tied inverter system. Moreover, as this system will not inject power to the grid, it can be installed without any permission from the authorities. This system is available with different power capacities starting from 3 KVA onwards and can be supplied as per customer’s power requirements.
FLYLINE BATTERYLESS SOLAR/MAINS COMPENSATION SYSTEM FEATURES:-
► No need of approval or permission from authorities. ► No need of battery. ► When solar energy is sufficient then total output load will operate on Solar through Flyline inverter. ► When solar energy is weak then Flyline inverter is taking balance power from grid . ► When solar energy is absent then the entire load is working on grid. ► It will work on Solar as well as grid. ► Compensating Type – First preference solar and second preference grid. ► Eg.: If we install 5 KVA power conditioner unit (PCV) on-grid model with 3 KW solar panel for generating power, we draw 5 KVA load with a discharging difference of 2 KVA which will be taken from the grid. ► We get full utilization of solar power. ► Pure sine wave out put.► Work with solar power, the best way to save money using natural resource. ► Pollution free type. ► Protection from lightening, ► Over Load Protection. ► Independent Digital display inverter input and out put voltage, load, etc. ► Audio and Visual Indicators. ► Can connect to the existing wiring. ► No husking sound.► Another special remarkable Option is, there is an internal inteligent charging control system is built in.When you require the back up suppeort you can add recomended batteries in future at any time.batteries ► ISO: 9001 -2015 Certified solar power conditioner.
|Rating||3 -6 KVA||8 -10 KVA||10-15 KVA|
|DC Voltage||72v||192 v||240 v|
|Solar input Volt||96 -160 v||192-320 v||240-400 v|
|Grid Input||Single or 3 phase|
|Solar Charger||PWM based MPPT OR IGBT|
|Inverter type||IGBT based|
|Output Voltage||230 v (single phase) & 415 volt (3 phase)|
|Operating Mode||Solar /Grid|
|Operating temp||0-50 deg.celsius|
|Humidity||95% non conditioning|
|Cooling||Air cooling / Oil cooling|
|LCD Display||Total output load,solar voltage, ac output voltage & solar utilisation %|
|Fault display||Fault display for DC low, and Checking status|
|Protections||Electronic protection & MCB|
|Alarm||Overload and DC low|
There is an option that we can add battery in future
